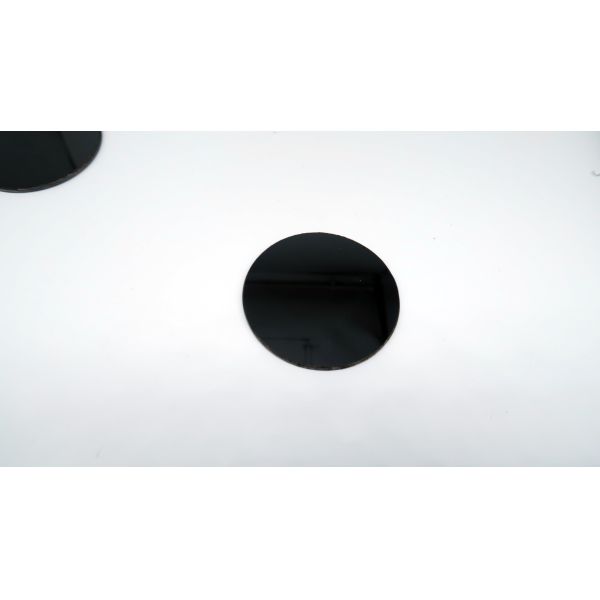

Round Ultra Hard PCD Blank 1.6mm Thickness Metal Cutting Use

Name: Round Ultra Hard PCD Blank 16mm Thickness Metal Cutting Use
Brand: CTSTC
Price: 1 USD

Quality Round Ultra Hard PCD Blank 1.6mm Thickness Metal Cutting Use wholesale

Brand Name : CTSTC

Model Number : 360R48.0/3.6-010B

Certification : CE

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : L/C, D/P, T/T,

Delivery Time : 5-8days

Packaging Details : Carton

Name : Polycrystalline Diamond

Usage : PCD inserts cutting tools

Application : Nonferrous metal、Nonmetal、Wood

Thickness : 1.6/2.0/3.2

Availability : In stock

Transportation : DHL, UPS, TNT, FEDEX

Granularity : 3-28um

Contact Now

Round Ultra-Hard Materials PCD Blank For Metal Cutting 1.6mm Thickness

Quick Details:

1. Long working life.
2. Uniform surface finish.
3. Especially for wood cutting.
4. Highly improved work piece quality and excellent dimensional control.
5. Increase productivity.

Description:

We have successfully developed a full line of polycrystalline diamond products. This is a direct result of us having introduced and digested advanced overseas technologies, and at the very same time benefiting from domestic production equipment and processes. Enhancement of composite properties alone took well over long time, setting in motion a product line on the leading edge of the international market place.

PCD cutting tool blanks consist of PCD layer integrally sintered at ultra-high pressure and high temperature to a cemented tungsten carbide backing. They have the high hardness and abrasion resistance of nature diamond, and combined with the toughness that of tungsten carbide. Their life are 10 to 100 times of tungsten carbide cutters.

Specifications
Name	Polycrystalline Diamond
Brand	CT-S&T
Country	China
Usage	PCD inserts cutting tools
Application	Metal,Nonmetal,Wood
Thickness	1.6/2.0/3.2
Availability	In stock
Transportation	DHL, UPS, TNT, FEDEX
Grit	3-28um

M-Series

Grade	Grit Sizeμm	Thickness mm	Diameter mm	Wear resistance	Impact	Conductivity
ZT005	5	1.6/2.0/3.2	47.0/54.0	Low	High	High
ZT10M	10	1.6/2.0/3.2	47.0/54.0	Middle	Middle	Middle
ZT025M	25	1.6/2.0/3.2	47.0/54.0	High	Middle	Low
ZT302M	30/2	1.6/2.0/3.2	47.0/54.0	High	Middle	Low

W-series

Grade	Grit Sizeμm	Thickness mm	Diameter mm	Wear resistance	Impact	Conductivity
ZT10W	10	1.6/2.0/3.2	47.0/54.0	Middle	Middle	Middle
ZT025W	28	1.6/2.0/3.2	47.0/54.0	High	Middle	Low
ZT302W	30/2	1.6/2.0/3.2	47.0/54.0	High	Middle	Low
